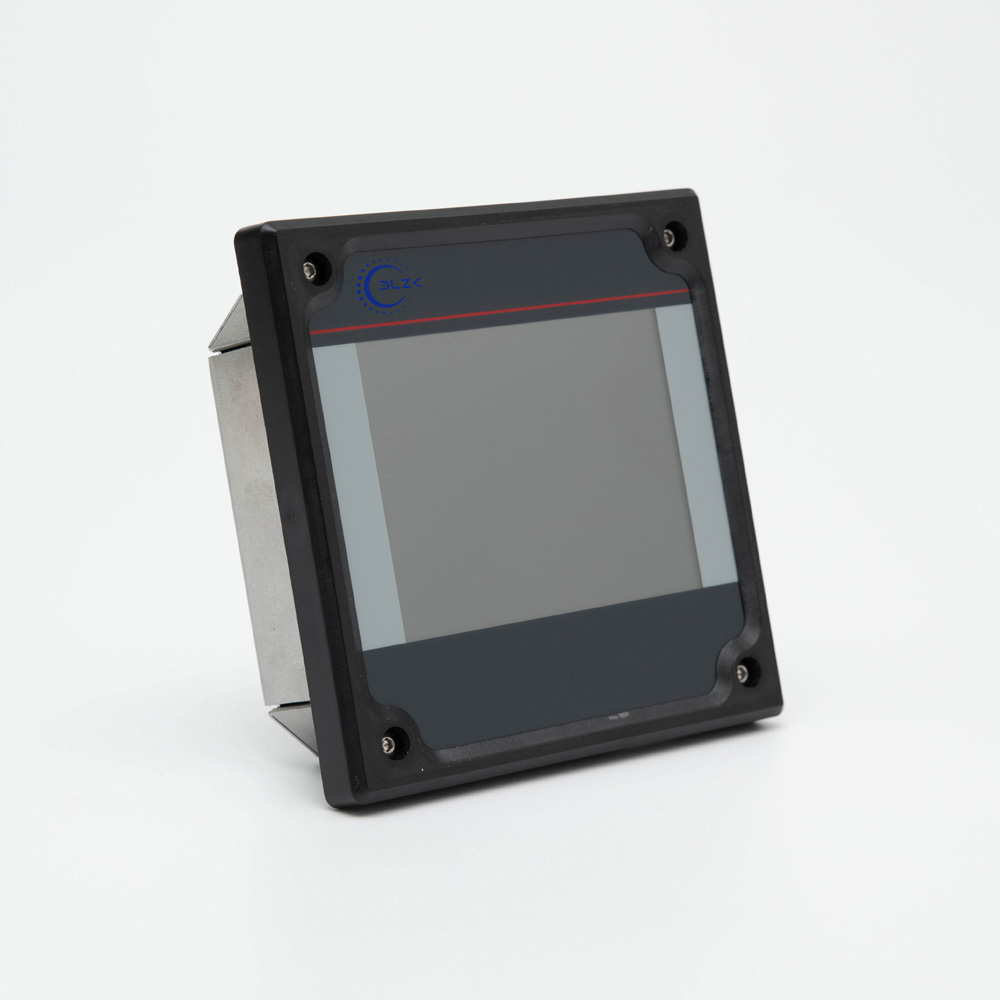

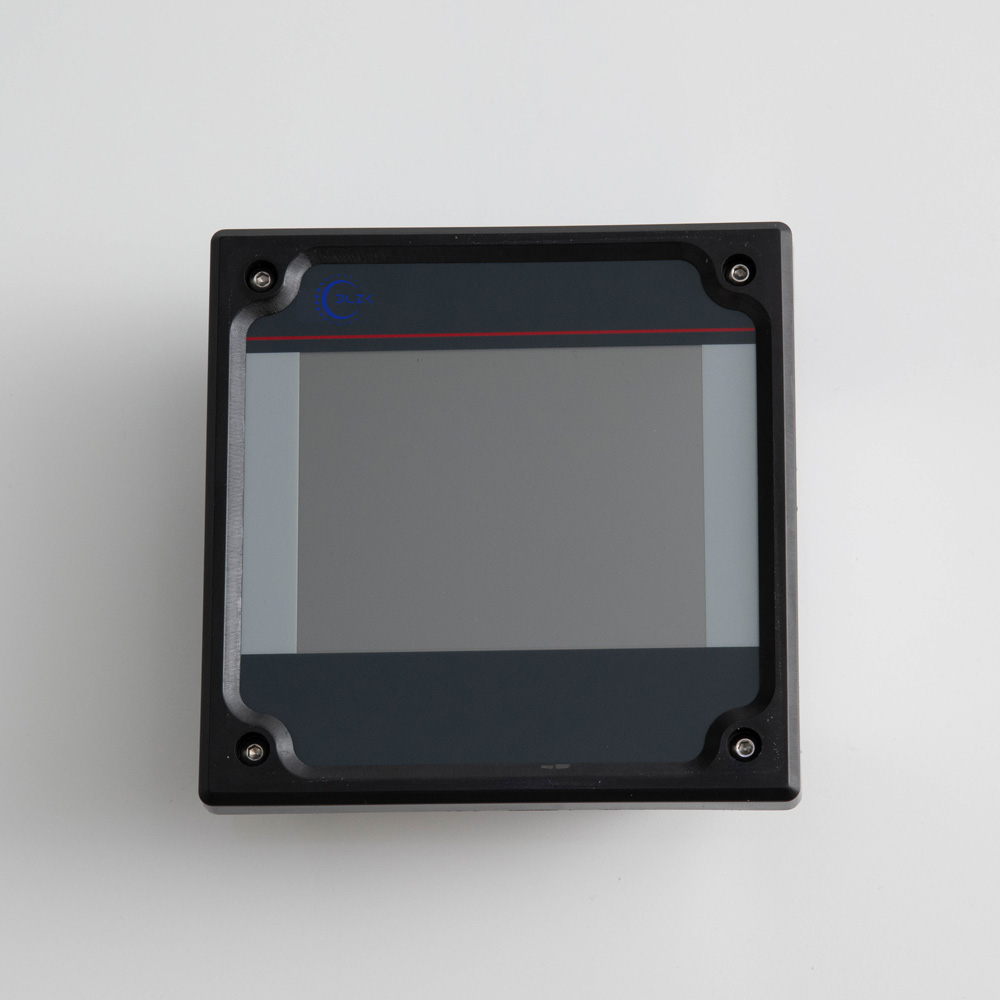

The digital measurement signal amplifier PA 62 with a display works digitally as a dual channel measurement signal amplifier for connecting two force sensors with strain gauge bridges. The menu guided and language independent debugging guide ensures that the debugging of the measurement signal amplifier and display is both convenient and fast.
Measurement and display of material tension
● X-t recorder for continuously displaying material tension
Monitor material tension based on adjustable extreme values and digital outputs (alarms)
● Analog output of measured values
| Measurement signal amplifier PA 62 | |
|---|---|
| working voltage | 24 V DC |
| Current consumption | 0.3 A |
| Rated operating temperature | 10 to 50 ° C |
| Measure cycle time | 1 ms |
| Strain gauge amplifier input voltage Bridge supply voltage |
2-channel ± 30 mV/14 Bit 10 V DC |
| Analog output Direct actual signal filtering actual signal |
one × 0 to 10V/1 × 0/4 to 20 mA one × 0 to 10V 4 × channel |
| Digital output output voltage |
four × channel 24V/maximum 500 mA |
| Interface CAN Ethernet (UDP) |
250 kBaud RJ 45, 100 MBit |
| Size (width × High x depth/protection level PA 6210 housing | one hundred and twenty × one hundred and twenty × 80/IP 54 |
