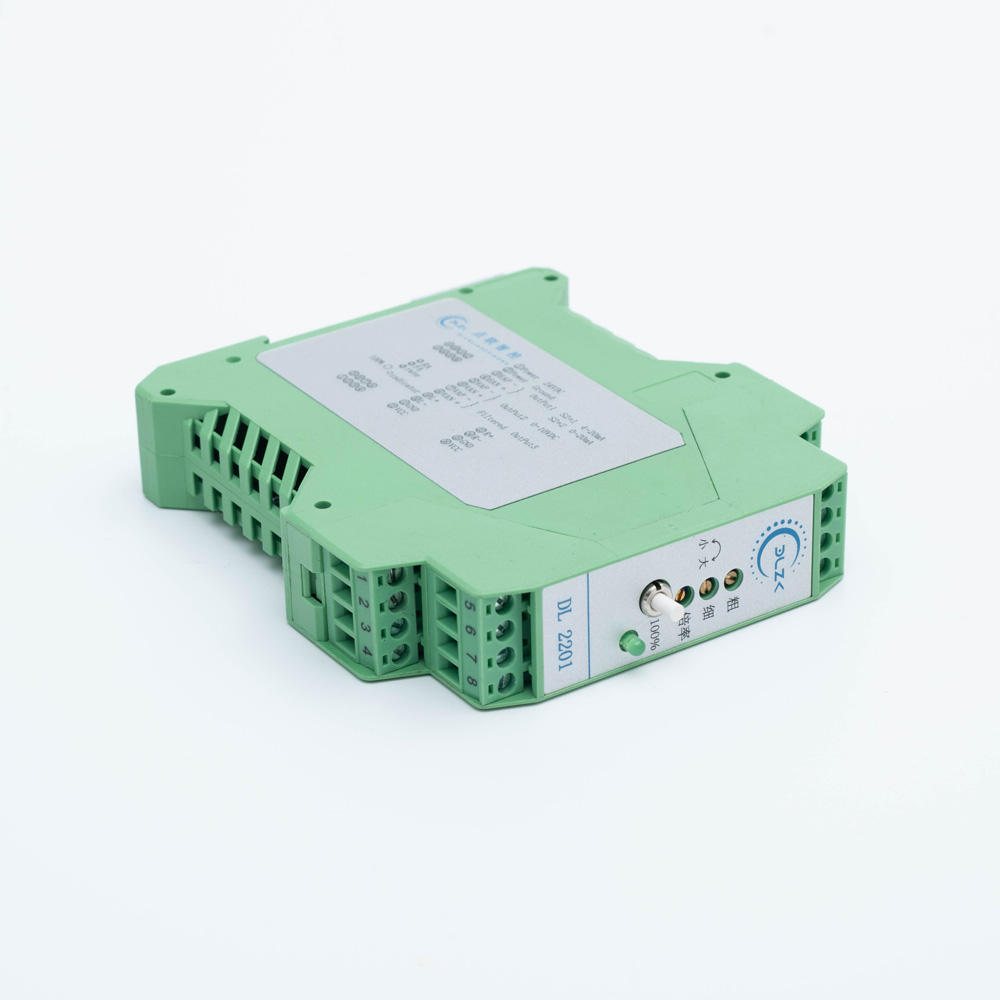

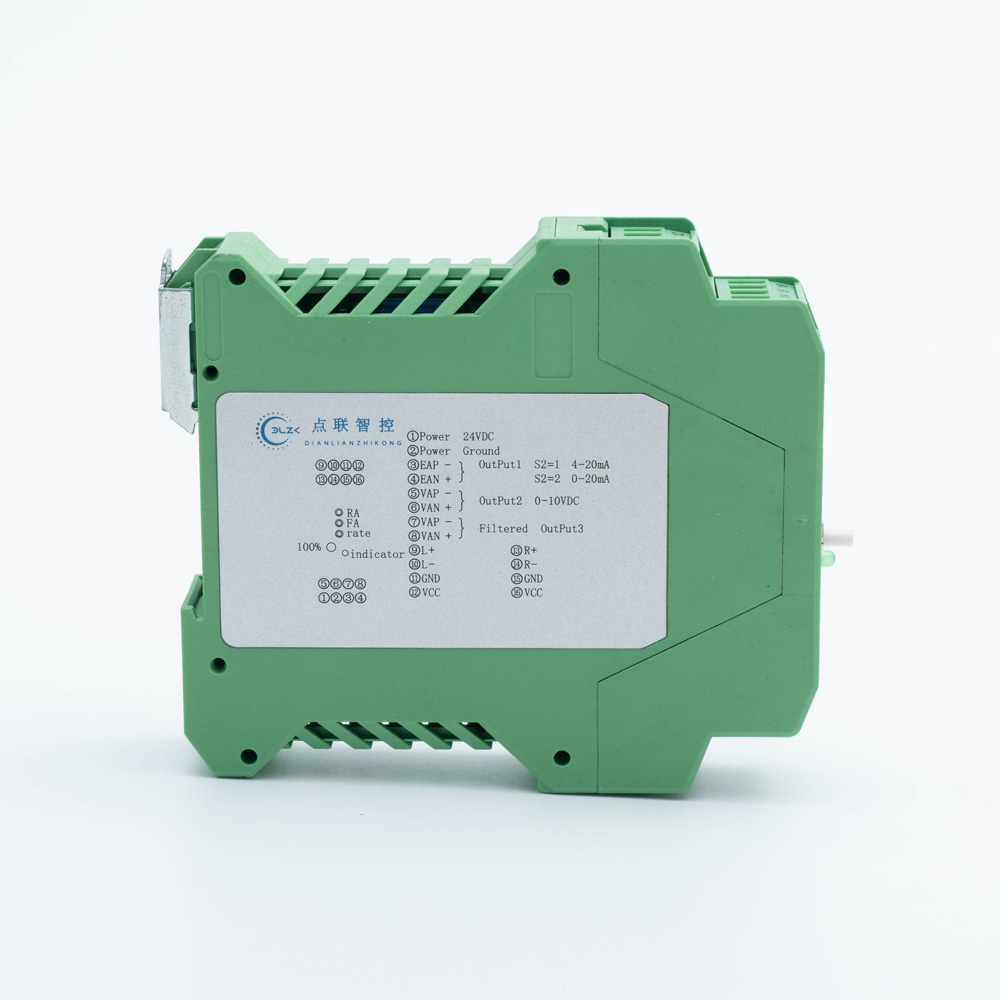

A single channel measurement signal amplifier used to connect two force sensors with strain gauge bridges
Precision instrument amplifier with small temperature drift, high long-term stability, and outstanding linearity
Equipped with a potentiometer for zero and tare weight, as well as gain settings
When accurately understanding the turning angle and installation position, calibrate the measurement signal amplifier with an internal reference voltage without testing the weight
| type | D3 (mm) |
| Accuracy level | 0.1 |
| Enlarge the range | 1410~2860 V/N 1080~2140 V/N 870~1740 V/V 730~1460 V/V 550~1100 V/N 490~980 V/N 440~900 V/V 410~820 V/N |
| input voltage | 0 to ± 20 mV |
| Output signal voltage | 0 to ± 10V (rise time 5ms) |
| Filter voltage | 0 to ± 10V (rise time of 2s) |
| current | 0/4 to 20 m A |
| Rated temperature | 0 to 60 ℃ |
| For rated values | ± 3%/10K |
| For zero signal | ± 3%/10K |
| For bridge power supply voltage | ± 0.04%/10K |
| Rated working voltage | 24V DC |
| Rated range | 20-30VDC |
| Current consumption | 0.2A |
| Bridge/bridge voltage | 10VDC/9-13VDC |
